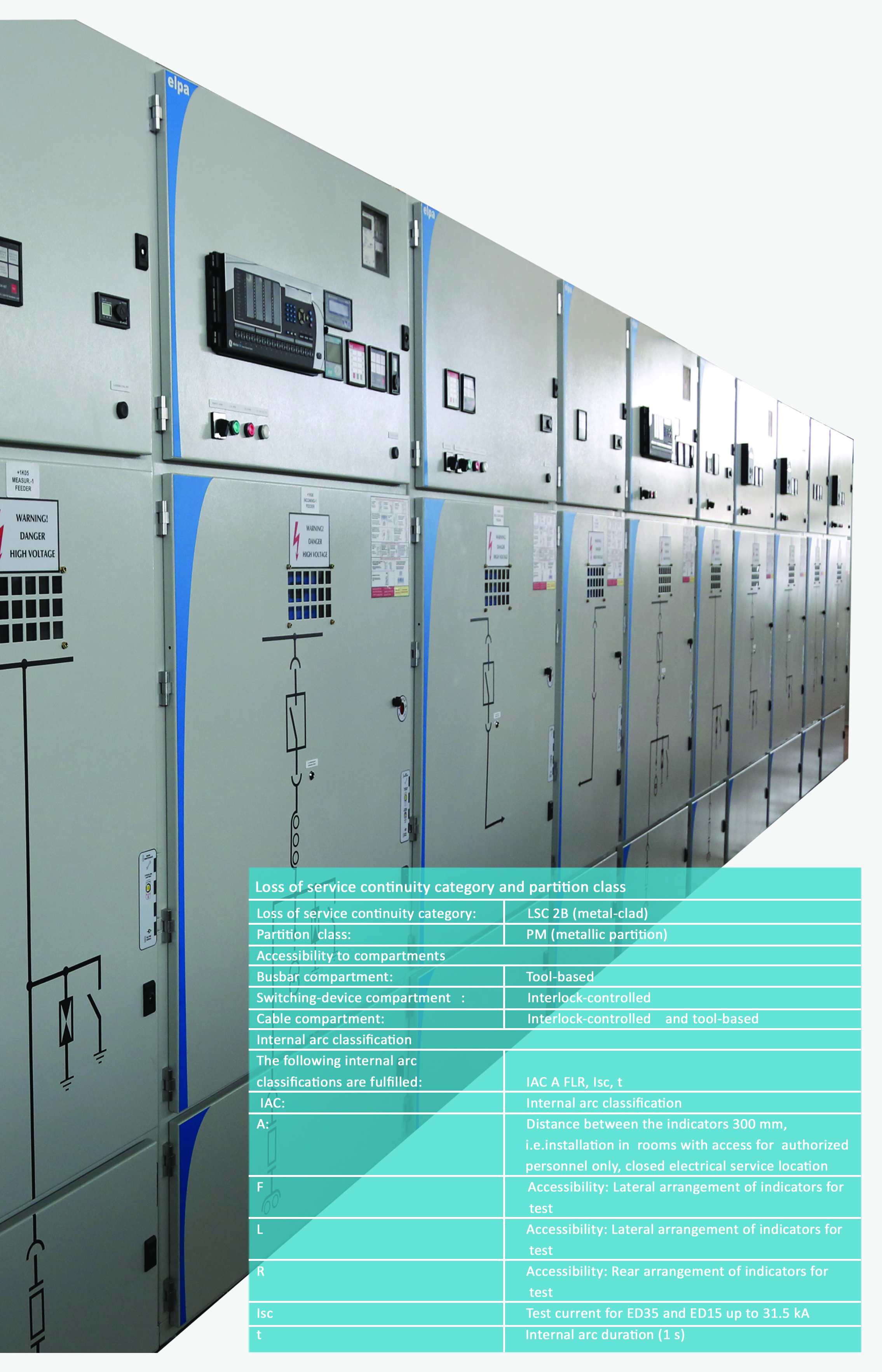

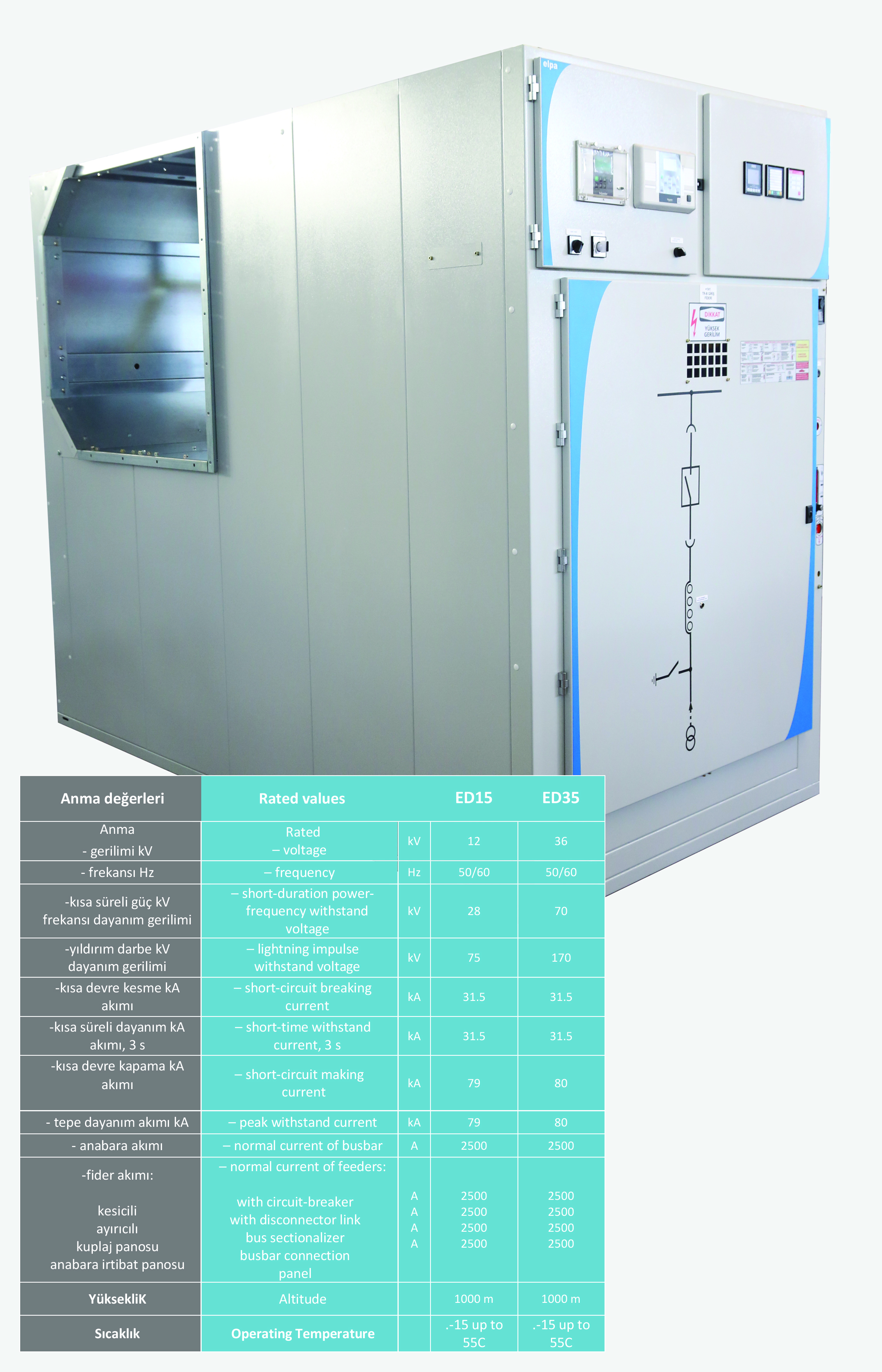

Metal Clad Switchgears are medium voltage switchgear systems consisting of 3 main and 1 supplementary sections and separated from each other by means of grounded metal plates, equipped with withdrawable type switching devices.



Application Areas

• Energy Generation and Distribution Facilities

• HV/MV Substations

• Mines

• Cement and Petro chemical Factories

• Iron & Steel Factories

• Water & Oil Pump Stations

• Airports, Ports, Railways

• Shopping Malls

• Hospitals



Advantages

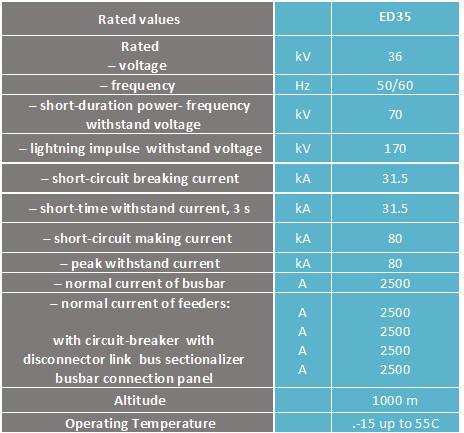

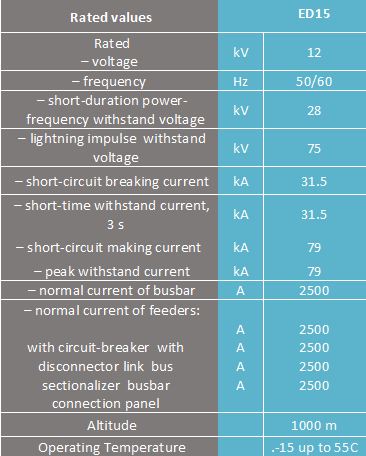

• Resistance to high current and short circuit (31,5kA /3 second),

• Requirement to less space due to the compact design (1200mm of panel width for 36kV)

• All divisions are separated by means of grounded metal and they are fully insulated systems.

• Ability to use with various types and properties of vacuum or sf6 circuit breakers and protection control board

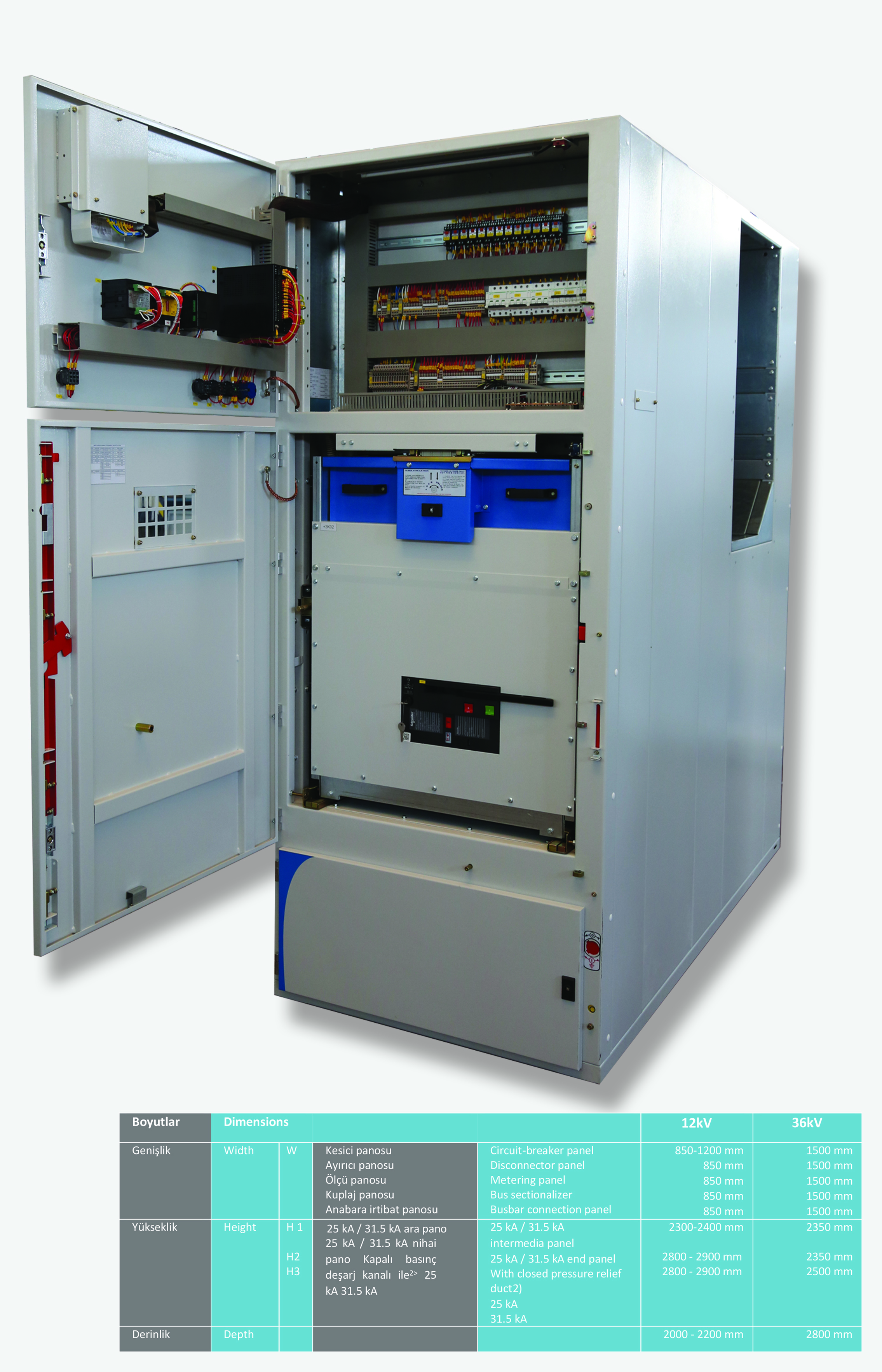

• Easily replaceable withdrawable type switching devices between the panels.

• Maintenance, reparation and on-site installation can be done from front or back side of the switchgear.



Standards;

IEC 62271-200
TS EN 62271-200
IEC 60529
